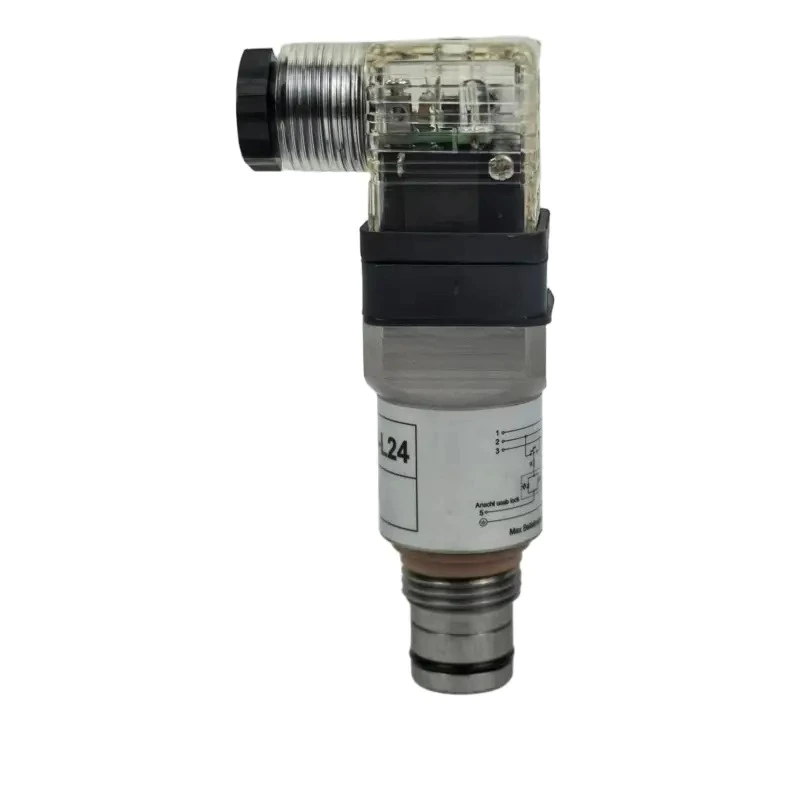

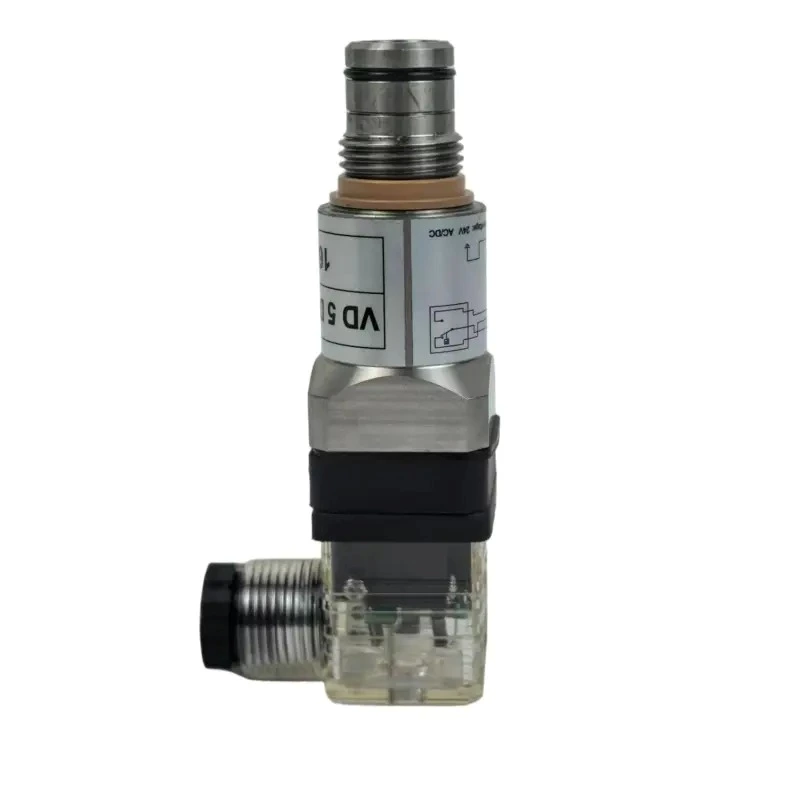

Differential Pressure Indicator
Product Description
The clogging indicator is a monitor for hydraulic and lubrication filters. It measures the inlet-outlet differential pressure ΔP of the filter element. Accumulated contaminants increase flow resistance and differential pressure. Upon reaching the preset value, visual and electrical switch signals are triggered to alert for filter element replacement.
Technical Data
Selection code：CL
Product type：Visual and electrical indicators
Pressure setting：2 bar、5 bar ±10%
Work pressure：420 bar
Temperature range：-30 °C to 100 °C
Connection thread：G 1/2
Maximum torque：100 Nm
Applicable voltage：24 V
Applicable type：Online detection of pressure
Product mode：FD 5 CL.1-LED
