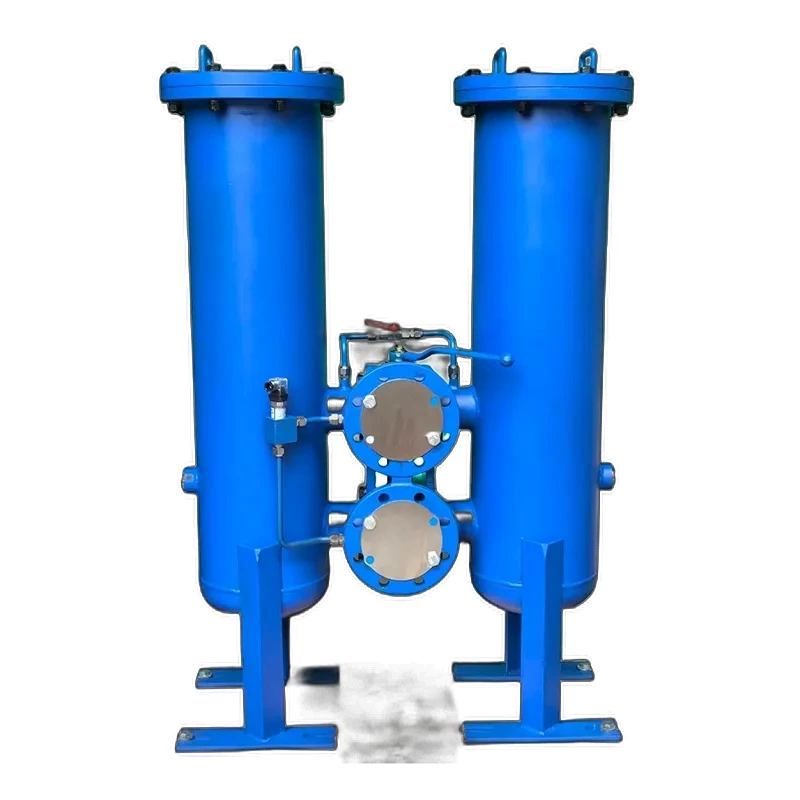

DHSV Series
DESCRIPTION
Duplex bowls line filter
Connection type and size:
SAE Flange connection: DN40 DN50 DN65 DN80 DN100DIN
Flange connection: DN80 DN100 DN125 DN150 DN200
Switch type: Stainless steel balls
Maximum flow rate up to 15000 l/min
TECHNICAL PARAMETER
Maximum working pressure: 16 bar
Bypass valve opening pressure: 3 bar
Transmitter opening pressure: 2 bar
Temperature range: -10℃ to 100℃
MATERIALS
Filter cover: Carbon steel
Filter cartridge: Carbon steel
Steering valve: Cast iron
Seals: NBR nitrile rubber (standard)
Or FKM fluororubber (customizable)
Filter element material: Fiberglass and wire mesh
MEDIA COMPATIBILITY
Suitable for mineral oil, lubricating oil, fire-resistant oil, and rapidly biodegradable media.
(If used for water-based or special media, please consult our sales department.)
