PHB Series
DESCRIPTION

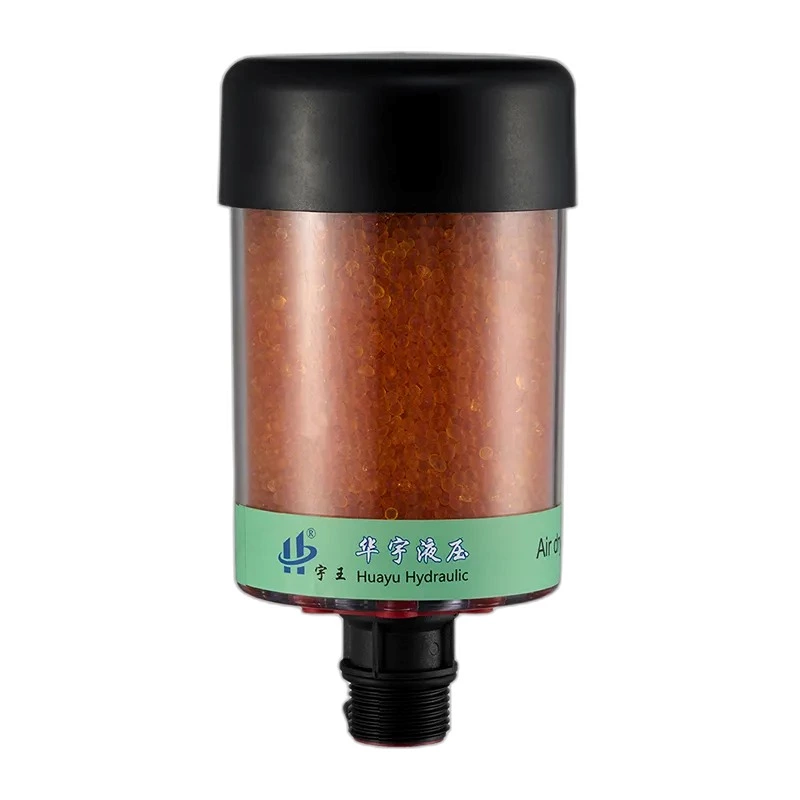

Air drying breathing filter
The air drying breathing filter is mounted on the oil tank of
the hydraulic and lubrication system to prevent moisture from
entering the system during ventilation. The air drying breathing
filter first dries the air flowing through the desiccant, and then
the air flows through an air filter with a filtration accuracy of 2
microns to remove solid pollutants in the air.
AVAILABLE FEATURES
Thread connection: G1"
Flange connection: 6-Hole installation
Max air flow rate up to 453 l/min
MATERIALS
Connection:Polyamide
Internal Support Pipe: Polyamide Screen, Polycarbonate
Dryer Agent: Silica Gel
Sealing element: NBR nitrile rubber
COMMON APPLICATION
Hydraulic systems, oil storage, tanks, transformers, renewable energy and Gearboxes.
