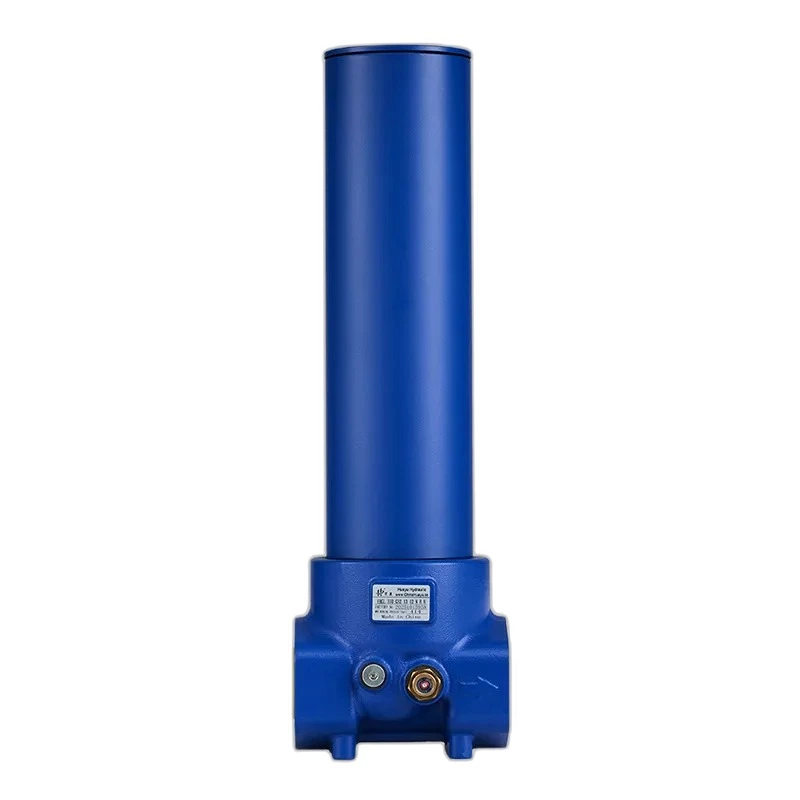

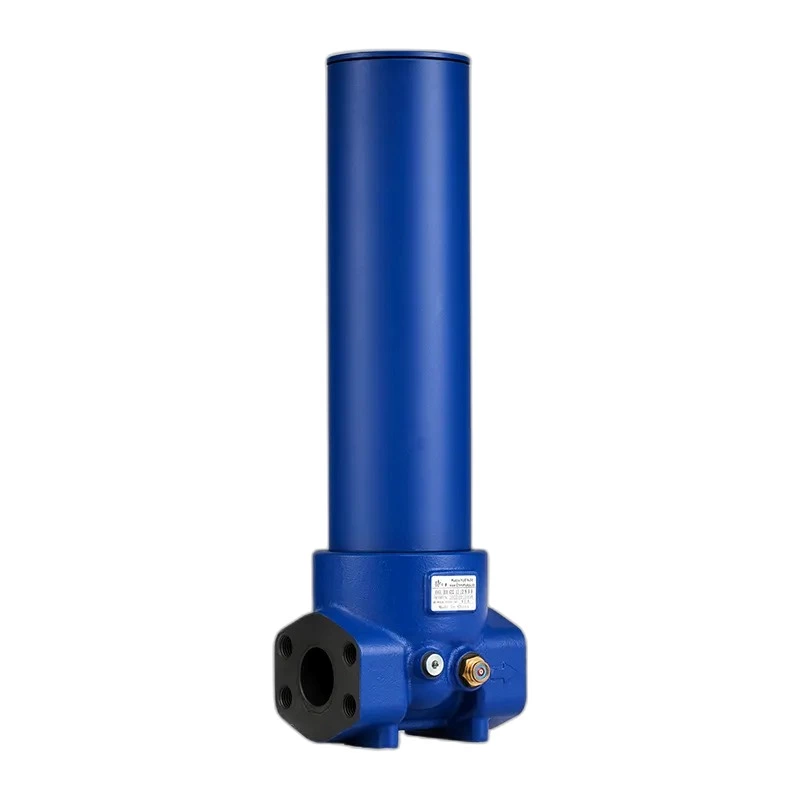

EHGL Series
DESCRIPTION
High pressure filter
Connection type and size:
BSP Threaded connection: G1¼" G1½" G2"
SAE Flange connection: 1¼" 1½" 2"
Maximum flow rate up to 600 l/min
TECHNICAL PARAMETER
Maximum working pressure: 414 bar
Bypass valve opening pressure: 4.5 bar
Transmitter opening pressure: 3.5 bar
Temperature range: -29℃ to 120℃
MATERIALS
Head: Cast iron
Filter bowl: Carbon steel
Seals: NBR nitrile rubber (standard)
Or FKM fluororubber (customizable)
Filter element material: Fiberglass
MEDIA COMPATIBILITY
Suitable for mineral oil, lubricating oil, fire-resistant oil, and rapidly biodegradable media.
(If used for water-based or special media, please consult our sales department.)
