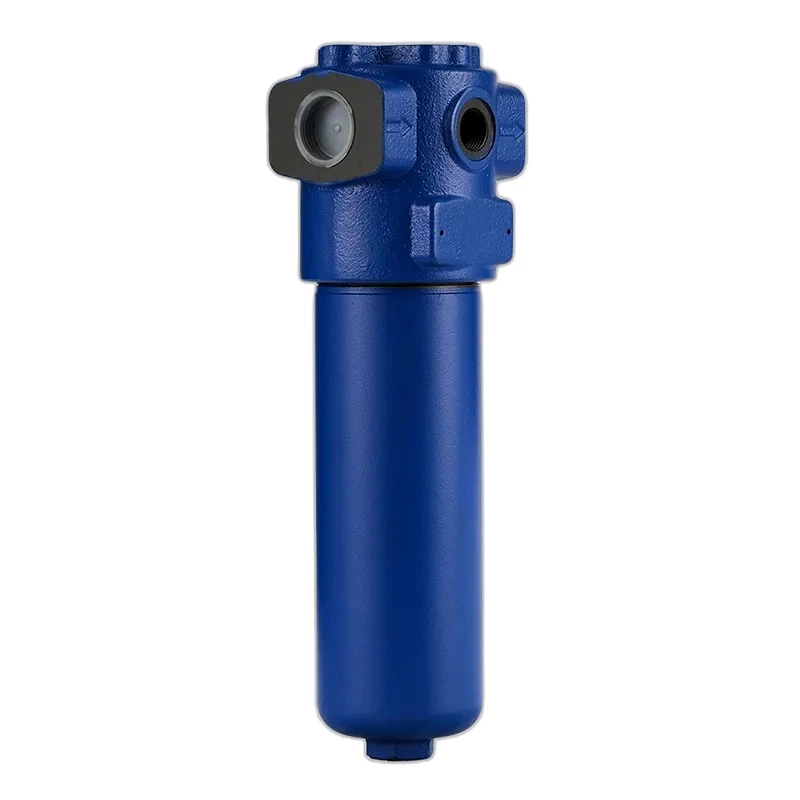

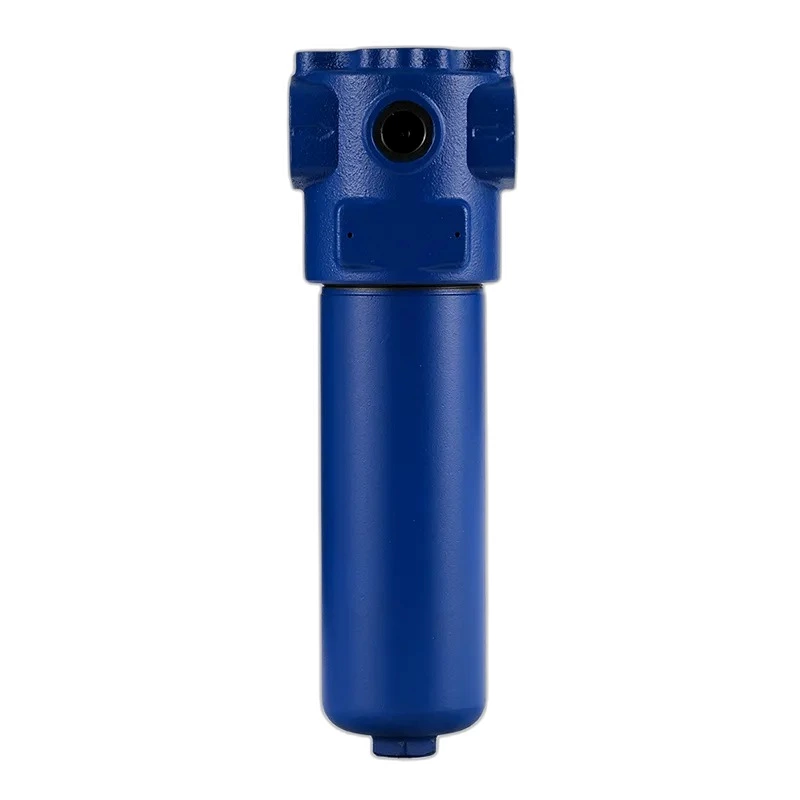

PHGL Series
DESCRIPTION
High pressure filter
Connection type and size:
Threaded connection: 1/2" 3/4" 1" 1- 1/4" 1- 1/2"
SAE Flange connection: 3/4" 1" 1- 1/4" 1- 1/2"
Maximum flow rate up to 500 I/min
TECHNICAL PARAMETER
Maximum working pressure:320 bar
Bypass valve opening pressure: 6 bar
Transmitter opening pressure: 5 bar
Temperature range: -25℃ to 110℃
MATERIALS
Head: Cast iron
Filter bowl: Carbon steel
Seals:NBR nitrile rubber (standard)
FKM fluororubber (customizable)
Filter element material: Fiberglass,
Stainless steel wire mesh
MEDIA COMPATIBILITY
Suitable for mineral oil, lubricating oil, fire-resistant oil, and rapidly biodegradable media.
(If used for water-based or special media, please consult our sales department.)
